Sikky Stage 2 packages are an intermediate swap kit that add stainless steel headers to our Stage 1 package. This kit is designed for a DIY’er who wishes to design their own fueling system, wiring etc. For a more complete kit check out our Stage 3 swap packages.
- Designed to work with left hand drive (LHD) vehicles only.
- Can be used on LS1, LS2, LS3, LS6, L99, LQ4, LQ9, LSA, LS7, LS9, LSX and any other LS based engine using this engine mount and oil pan bolt pattern.
- Relocation or Removal of the ABS module is required for this swap. This will require new brake lines to be made.

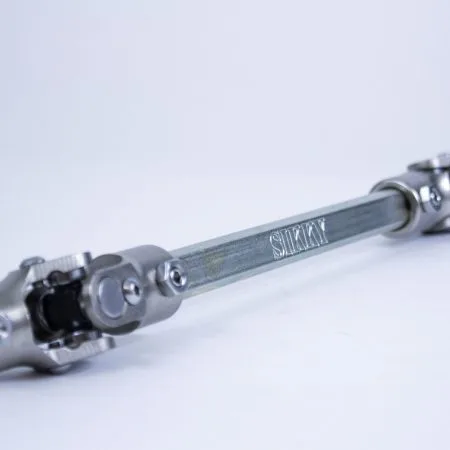

- For proper header fitment you will need to use aftermarket eye ball arms (rear attachment point for lower control arm) as well as Sikky’s low profile steering shaft. Learn more about the Sikky Low Profile Steering Shaft.
- Transmission and Shifter- This kit is developed to work with both the 4L60E and T56 transmission. The shifter on the T56 is located in the factory position to allow an OEM look and feel to the vehicle.
- Requires no modifications to the factory front sub frame.

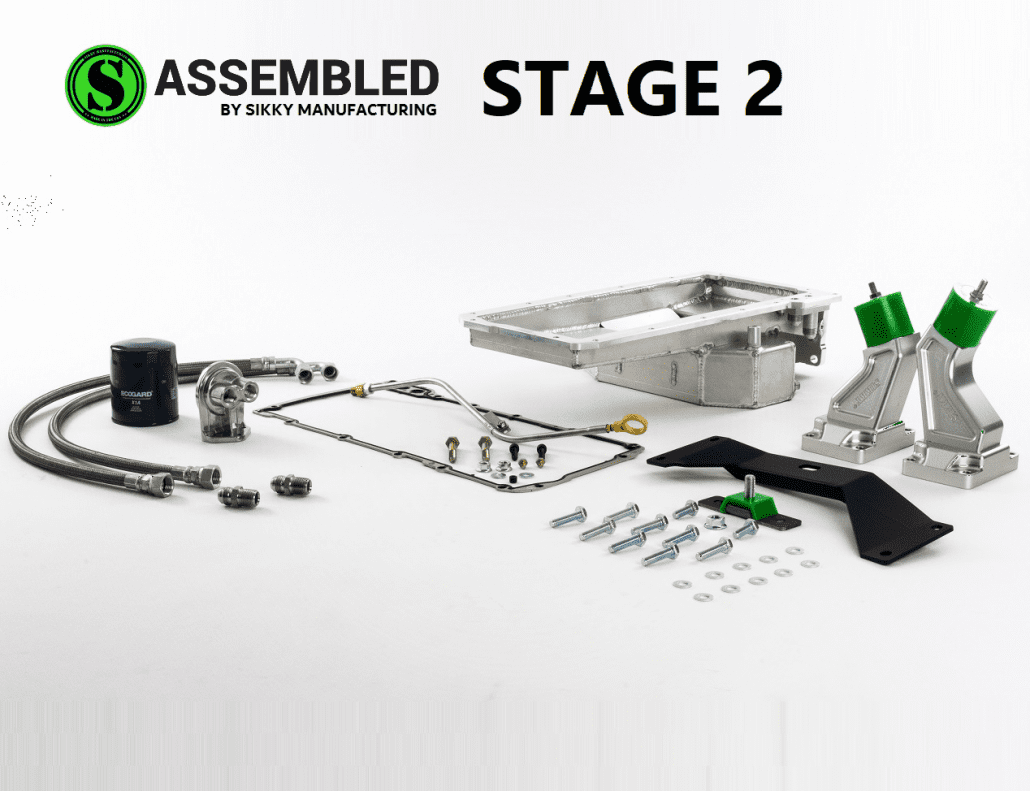

Stage 2 Package Includes:

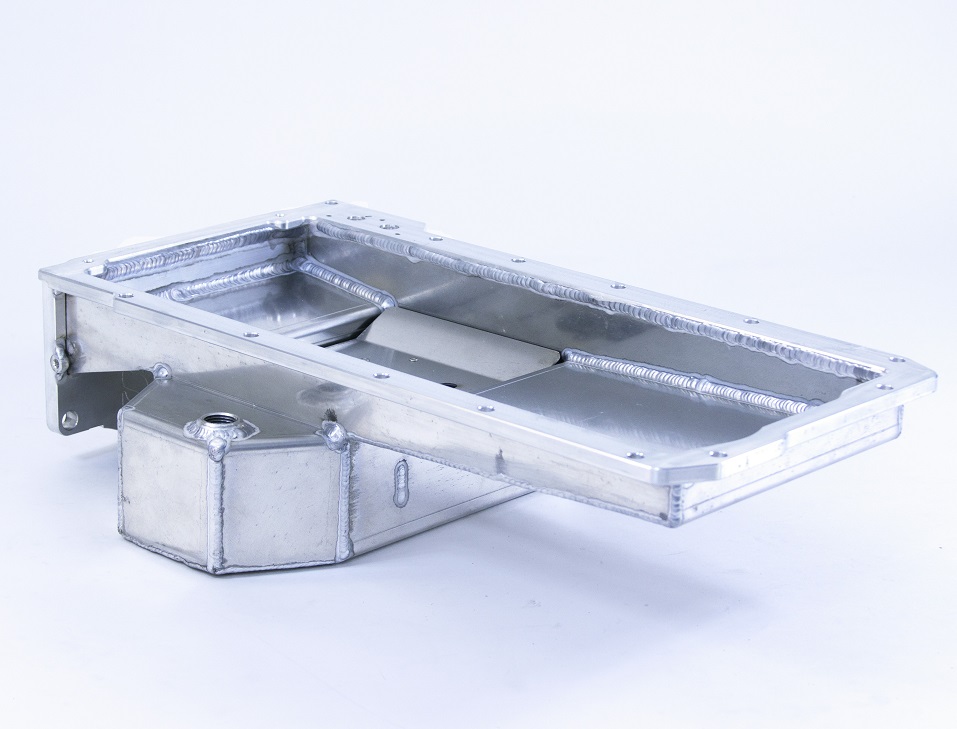

Aluminum Race Oil Pan
- Designed to fit perfectly around the front sub frame of the BMW E36 3 Series chassis when using a Sikky mount kit
- High capacity 5 1/2” deep front sump design with side kick outs for maximum oil capacity
- 1/2” thick CNC machined 6061 Billet Aluminum Flange and back plate
- Machined gasket surface to ensure no gasket leaks
- Rigid design like the OEM GM pan to ensure maximum strength and durability
- Included back plate compatible with factory dust covers to prevent debris entering the bell housing
- High ground clearance design keeps the pan from hanging out the bottom of the car
- High capacity 5 quart sump (does not include oil filter or oil filter relocation)
- Comes with Pan mounted bottom port remote oil filter adapter, Magnetic drain plug and Hardware Kit (utilizes some factory hardware not included).
- F-Body Camaro Pickup Tube and new OEM gasket sold separately
Remote mount filter Kit
- -10 AN Fittings (4) and Stainless Braided Lines (2)
- Remote Oil Filter Base
- High Quality Oil Filter
- All Fittings and Hardware
Engine Mounts & Transmission Mounts
- CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum Mounts
- Custom Urethane Bushings with True Isolation
- High Grade Hardware Kit
- Proper Engine Placement and Axle Alignment
- Lifetime Warranty on Engine Mounts
- CAD/CAM Designed
- CNC Bent Steel Mount Bracket
- Urethane Bushing
- High Grade Hardware Kit
- Designed for use with the T56 or T56 Magnum
- Lifetime Warranty on Transmission Mount
- Steel One Piece Driveshaft with High Strength 1310 U-joints (aluminum upgrade available)
- Designed for Use with the T56/T56 Magnum or 4l60e Transmission
- Driveshaft is for 4 bolt differential flanges. If you have a 6 bolt flange, please call as you will need a custom shaft.
- 1 3/4″ Primaries, 3″ Collector, Stainless Steel
- V-Band Flange Pre-Installed (clamp and other half included)
- Includes New Gaskets and Bolts
