You are here: Home1 / Chassis2 / BMW E363 / Sikky Stage 1 BMW E36 LS Swap Package
e36 stage 1 ls swap kit

Sikky Stage 1 BMW E36 LS Swap Package

$2,119.92

Select Motor Mount Bushing Type *

Select Transmission Type *

Select Drive Shaft *

All options are a one piece shaft with high strength 1310 u-joints and conversion plate. Designed for 4 bolt differential flanges. Note: Steel driveshafts marked -S, aluminum driveshafts marked -A.

Add Oil Pan Gasket *

Add F Body Camaro Oil Pick Up Tube *

Add Steering Shaft Assembly *

Includes low profile steering shaft that allows your to easily mate your E36 steering rack to your E36 steering column.

Add Control Arm Bushings *

Add Power Steering Line Kit *

SKU: MKP009 Categories: BMW E36, E36, Swap Kits
  • Description
  • Installation Instructions

Description

This Stage 1 packages includes the basic components needed to mount your engine into your BMW E36. This consists of Sikky’s industry leading motor mounts, trans mount, oil pan and driveshaft and is ideal for a do-it-yourself type who wants to source or fabricate their own headers, wiring etc. Swap accessories such as stainless steel headers are available and come standard in our Stage 2 Swap Package. For those who want a turn key engine swap, we offer a comprehensive Stage 3 Swap Package that includes everything needed to install and start your new LS engine.



Fitment Notes:

  • Designed to work with left hand drive (LHD) vehicles only.
  • Can be used on LS1, LS2, LS3, LS6, L99, LQ4, LQ9, LSA, LS7, LS9, LSX and any other LS based engine using this engine mount and oil pan bolt pattern.
  • Relocation or Removal of the ABS module is required for this swap. This will require new brake lines to be made.
  • For proper header fitment you will need to use aftermarket eye ball arms (rear attachment point for lower control arm) as well as Sikky’s low profile steering shaft. Learn more about the Sikky Low Profile Steering Shaft.
  • Transmission and Shifter- This kit is developed to work with both the T56, T56 Magnum, Tr6060 and CD009 transmissions.
  • Requires no modifications to the factory front sub frame.

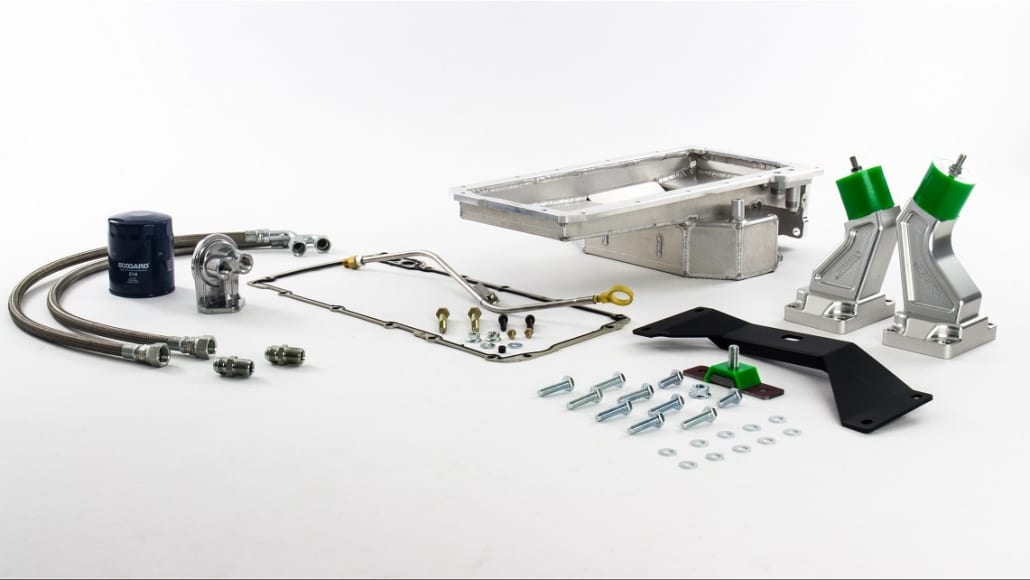

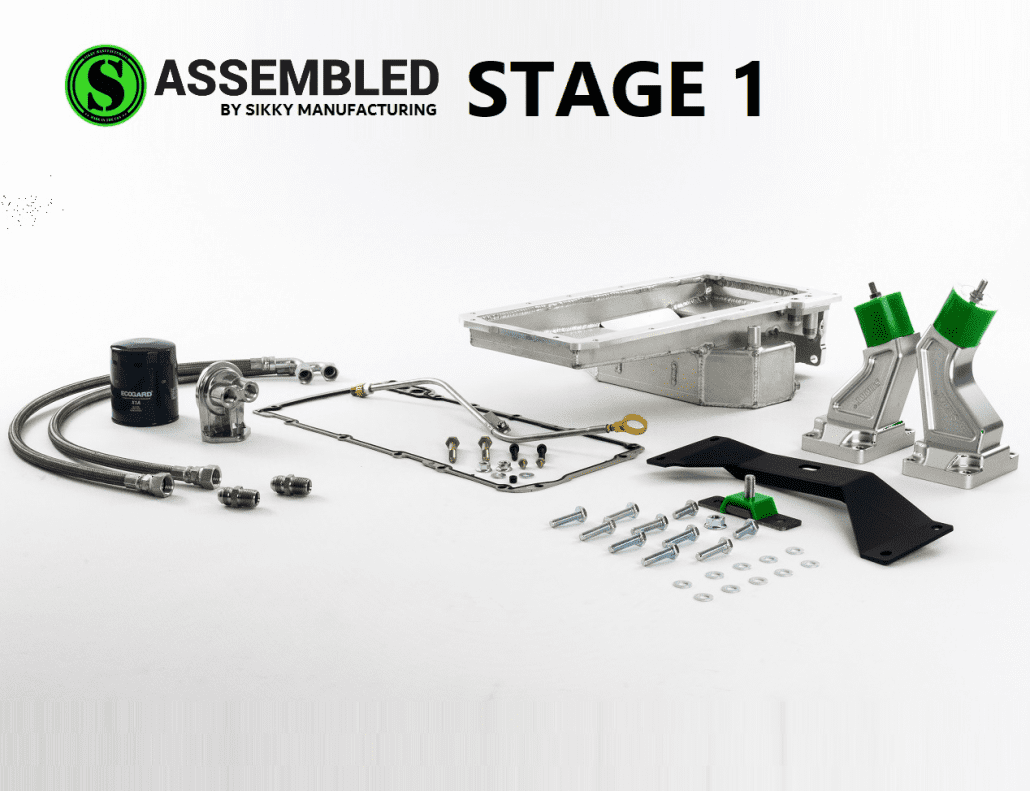

Stage 1 package details:

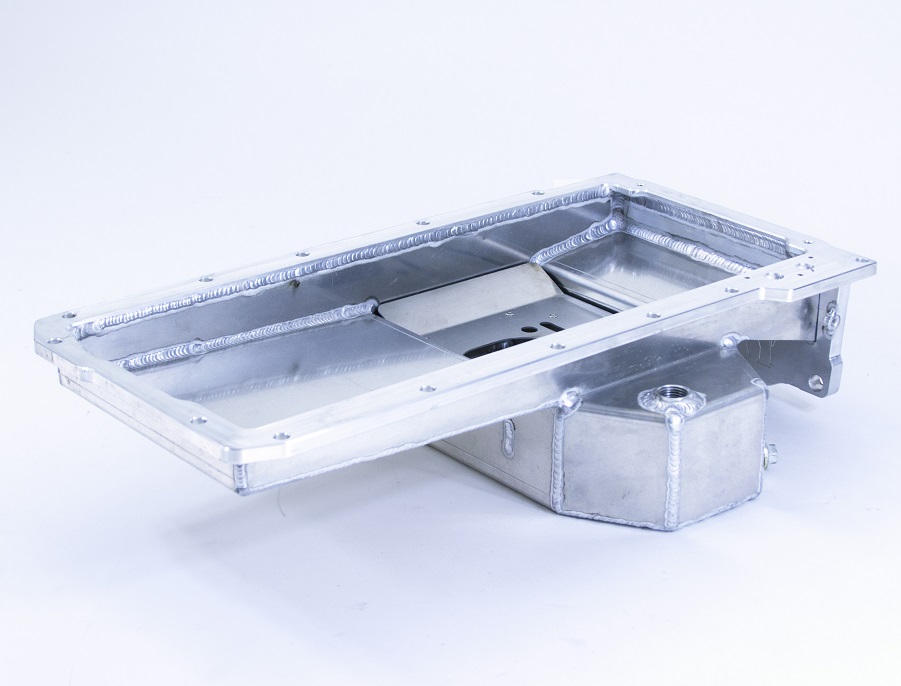

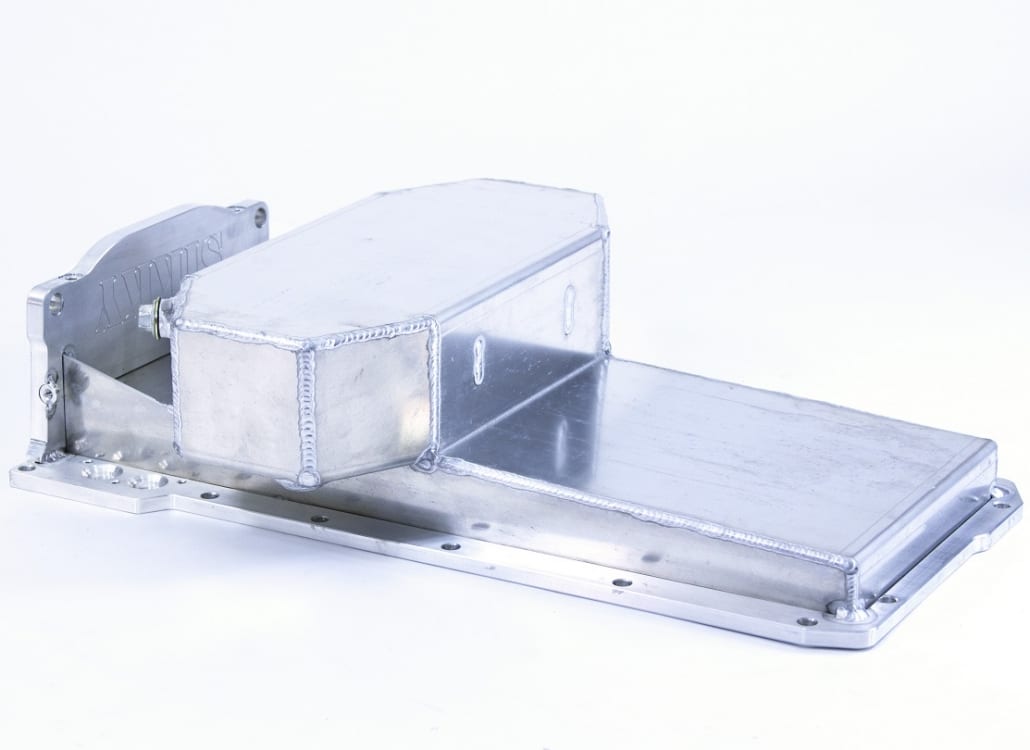

Aluminum Race Oil Pan

  • Designed to fit perfectly around the front sub frame of the BMW E36 3 Series chassis when using a Sikky mount kit
  • High capacity 5 1/2” deep front sump design with side kick outs for maximum oil capacity
  • 1/2” thick CNC machined 6061 Billet Aluminum Flange and back plate
  • Machined gasket surface to ensure no gasket leaks
  • Rigid design like the OEM GM pan to ensure maximum strength and durability
  • Included back plate compatible with factory dust covers to prevent debris entering the bell housing
  • High ground clearance design keeps the pan from hanging out the bottom of the car
  • High capacity 5 quart sump (does not include oil filter or oil filter relocation)
  • Comes with Pan mounted bottom port remote oil filter adapter, Magnetic drain plug and Hardware Kit (utilizes some factory hardware not included).
  • F-Body Camaro Pickup Tube and new OEM gasket sold separately

Remote mount filter Kit

  • -10 AN Fittings (4) and Stainless Braided Lines (2)
  • Remote Oil Filter Base
  • High Quality Oil Filter
  • All Fittings and Hardware

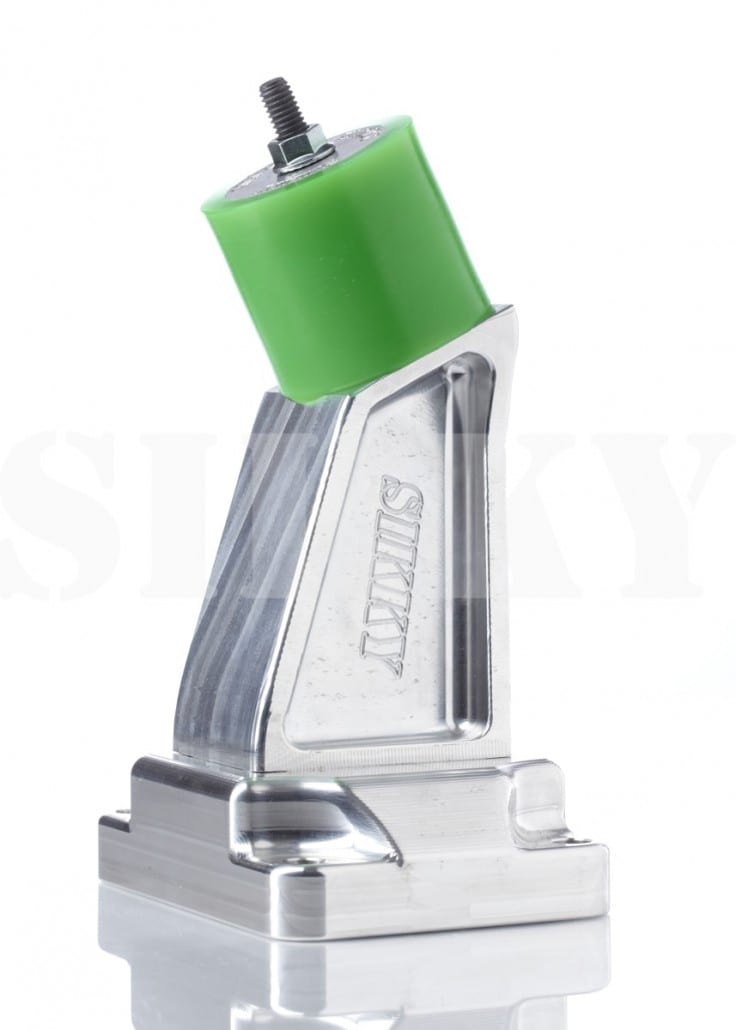

Engine Mounts

  • CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum Mounts

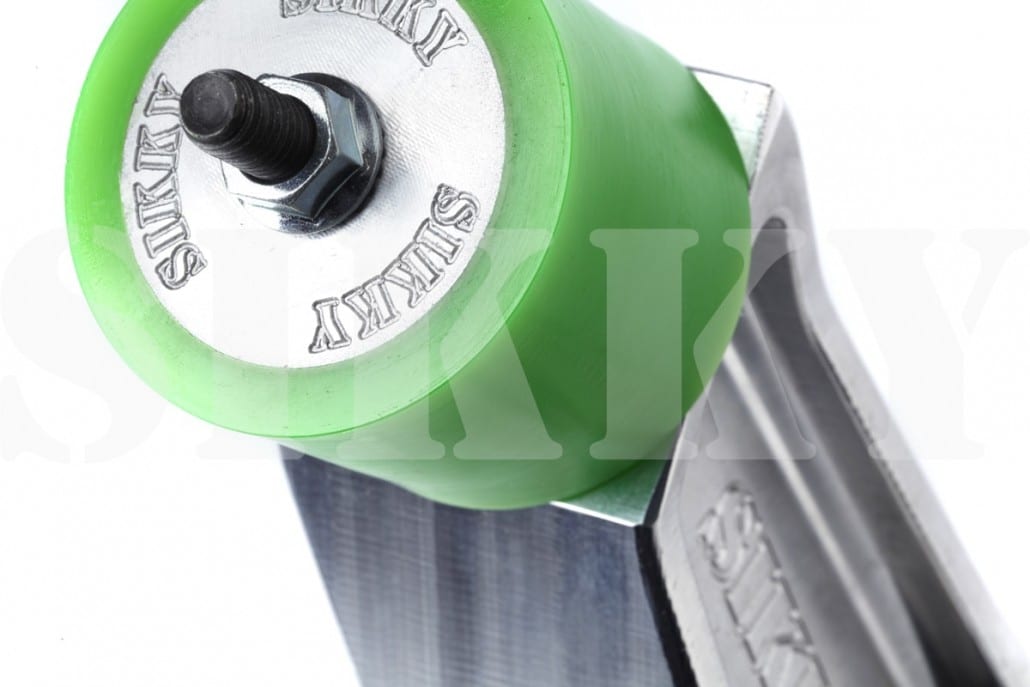

  • Custom Urethane Bushings with True Isolation
  • High Grade Hardware Kit
  • Proper Engine Placement and Axle Alignment
  • Lifetime Warranty on Engine Mounts

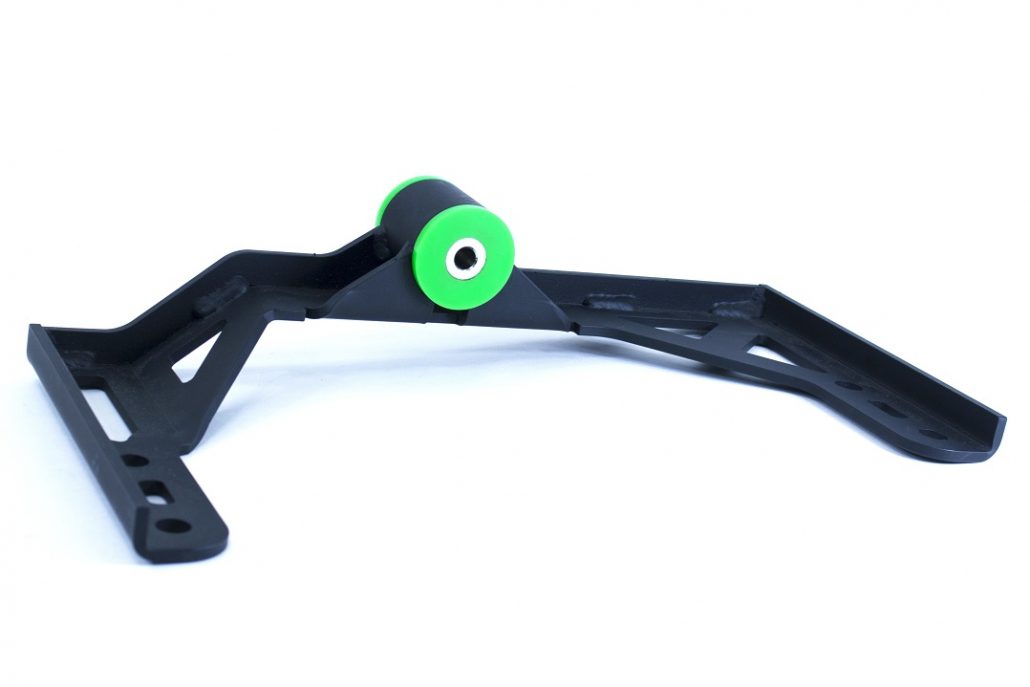

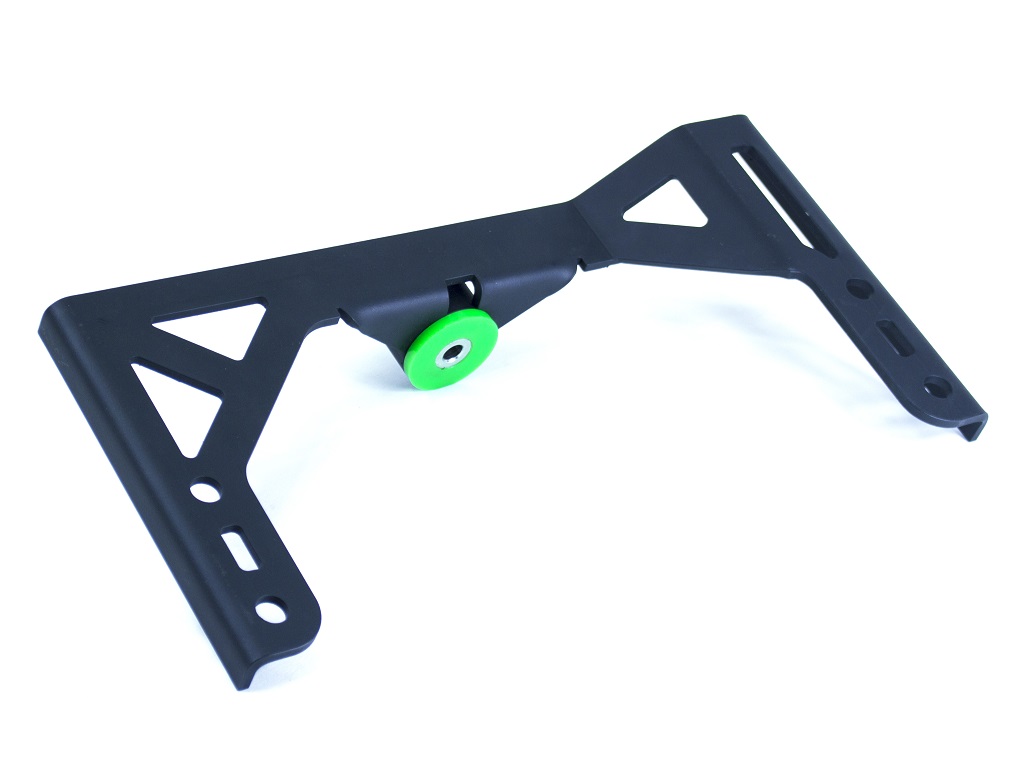

         Trans Mount

  • CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum Mount
  • CNC Bent Steel Mount Bracket
  • Urethane Bushing
  • High Grade Hardware Kit
  • Lifetime Warranty on Transmission Mount

Driveshaft

  • Steel One Piece Driveshaft with High Strength 1310 U-joints (aluminum upgrade available)
  • Driveshaft is for 4 bolt differential flanges.

sikky pdfMount Kit Installation
